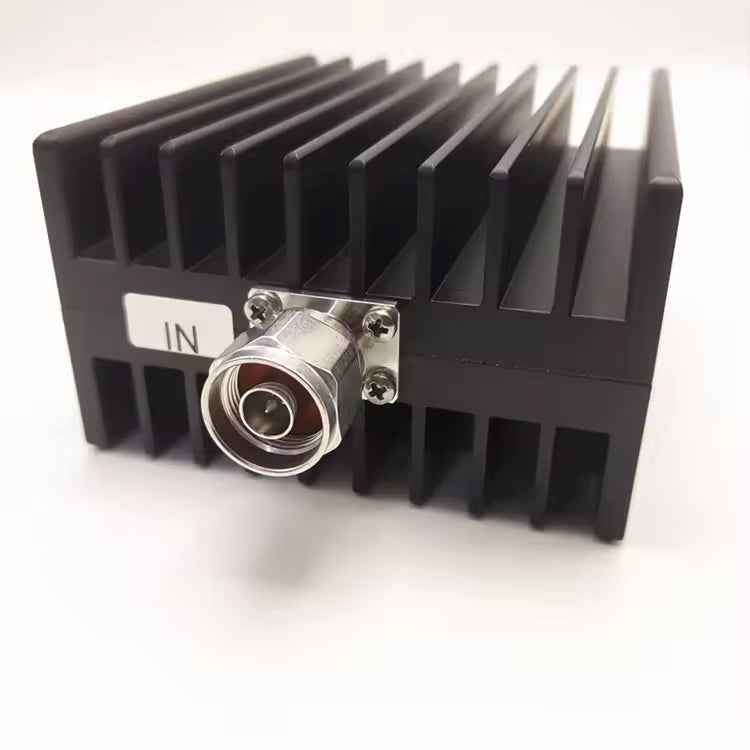

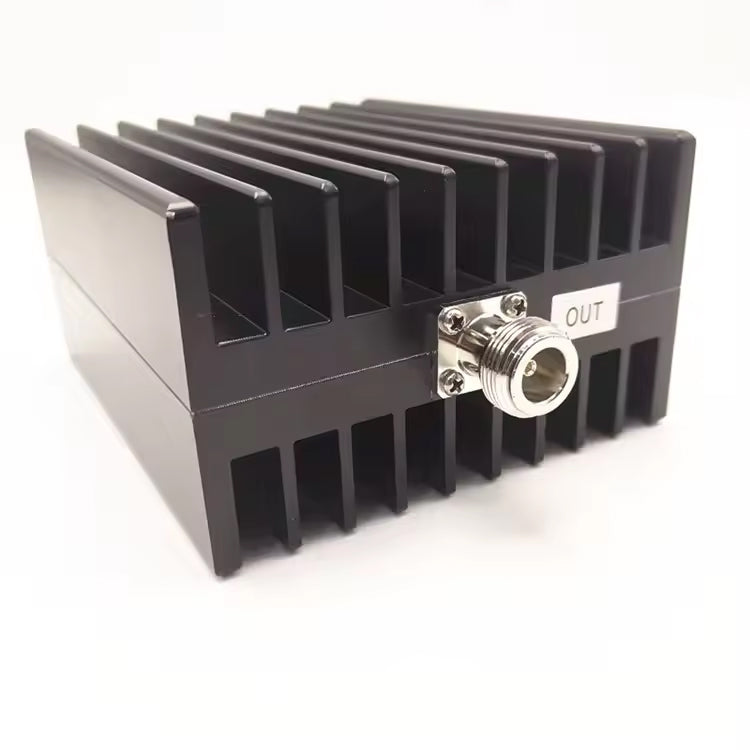

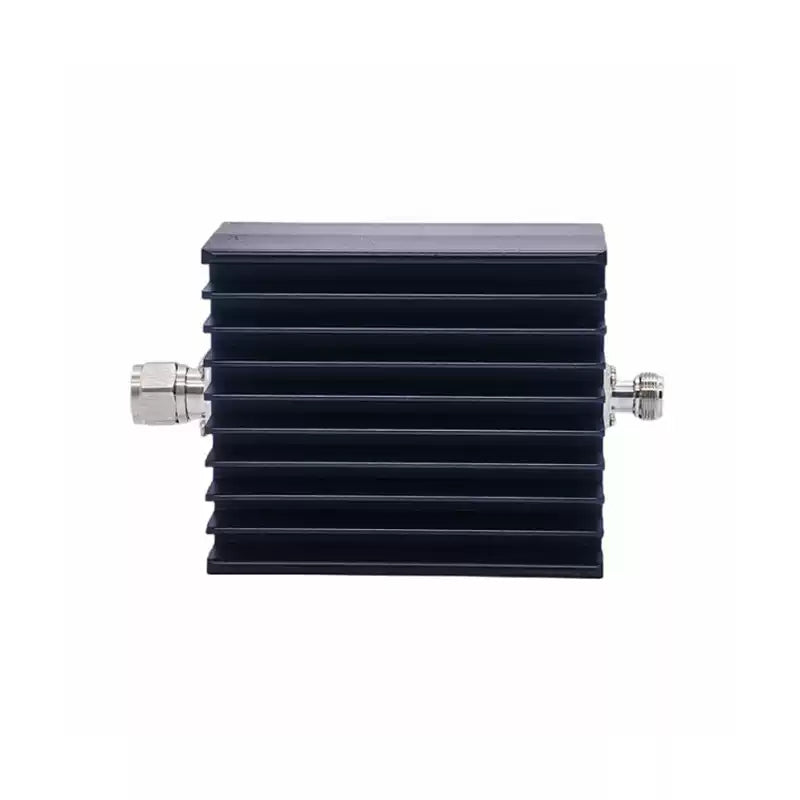

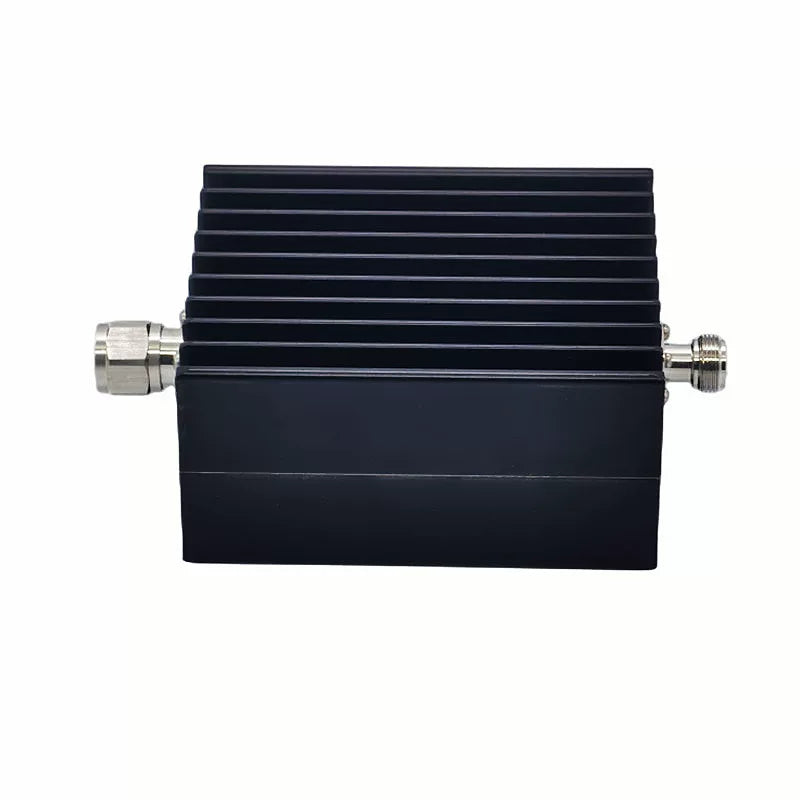

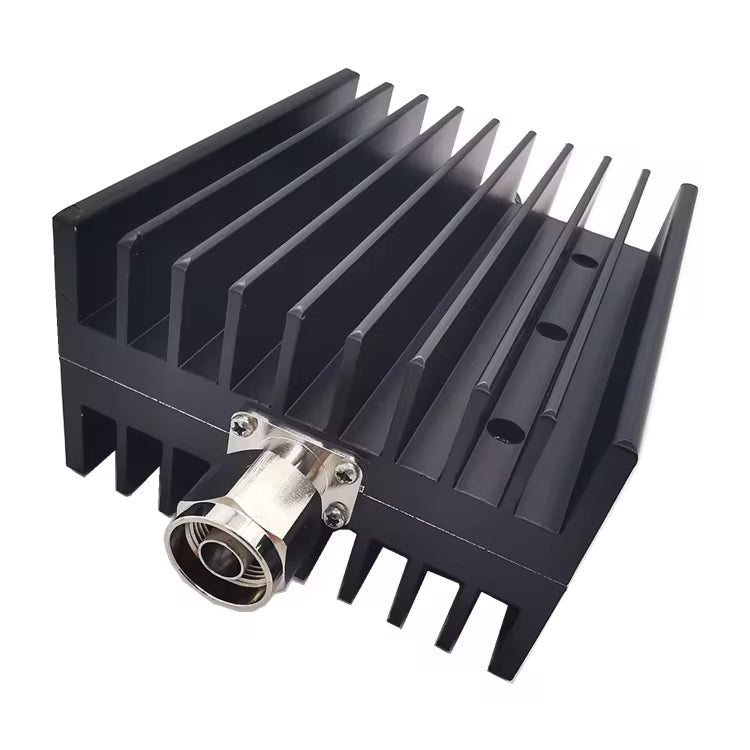

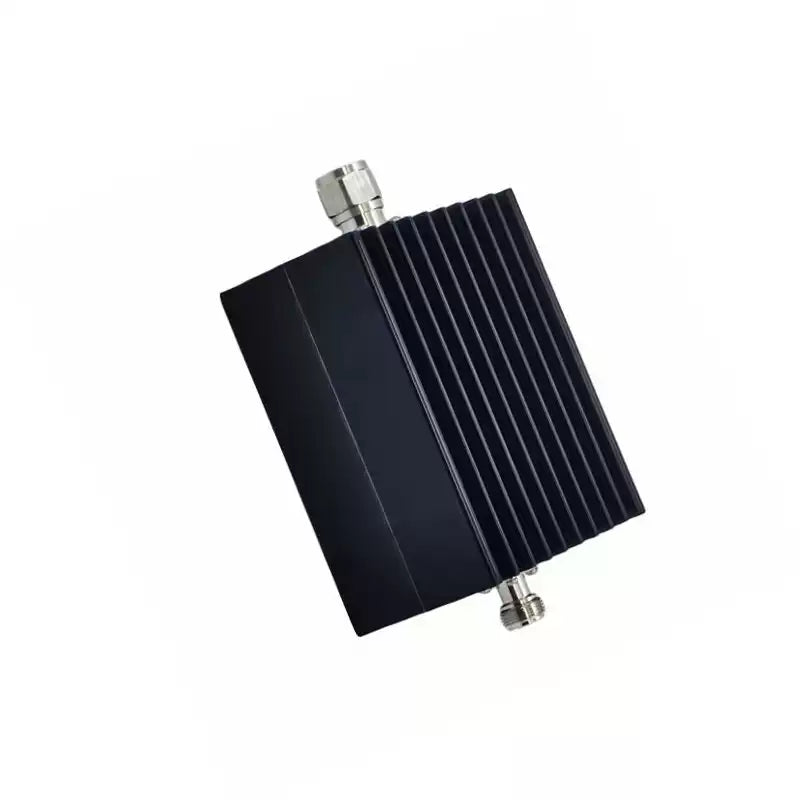

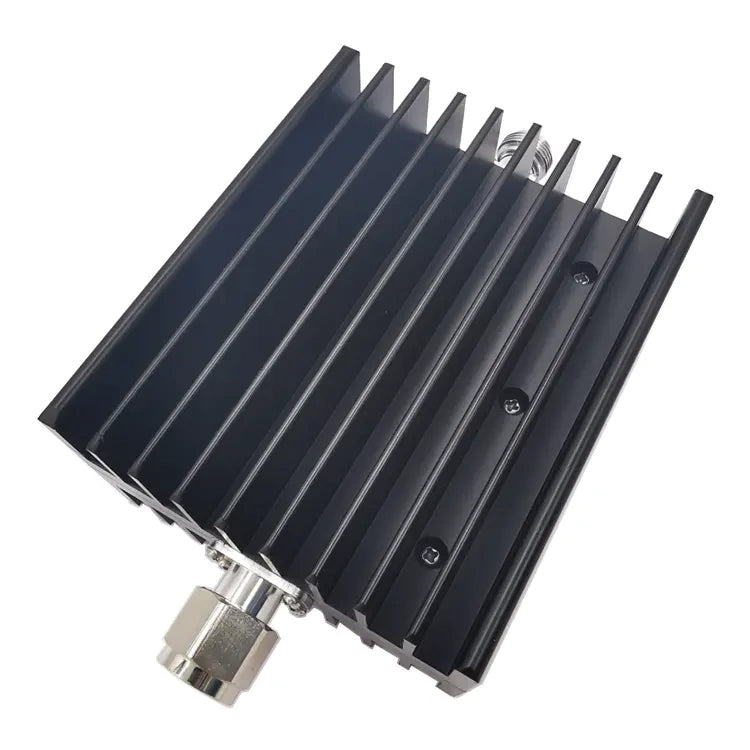

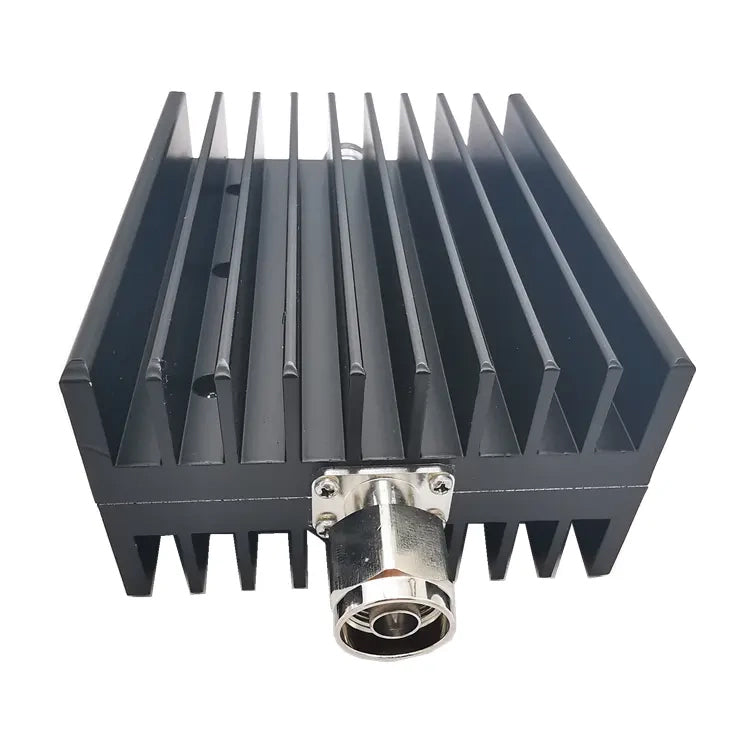

100W fixed attenuator, square shape (1-60dB), N-type male input and female output, DC-3GHz/4GHz
DC4G 3dB
$100.00
促销价
$100.00
常规价格
跳至产品信息
100W fixed attenuator, square shape (1-60dB), N-type male input and female output, DC-3GHz/4GHz
$100.00
促销价
$100.00
常规价格
DC-4GHz 100W N RF Coaxial Fixed Attenuator Frequency 0-4000MHz N Male to N Female Connector High Power attenuator
If you need other dB Attenuation，please leave message and ask our price first!!!
1. Power: 100W
2. Frequency Range: DC-3GHz/4GHz
3. Standing-wave ratio (SWR): ≤1.20
4. Connector Type: N Male/N Female
5. Impedance: 50Ω
6. Attenuation: 1-60dB available
7. Dimension: 163mm*100mm*61mm
8. Operating Temperature: -55°C~125°C
Specification as below：
|
Frequency( GHz ) |
DC-4GHz |
||||||
|
Impendence( Ohm ) |
50 |
||||||
|
VSWR |
≤1.20 |
||||||
|
Application |
Indoor |
||||||
|
Average Power ( W ) |
100W |
||||||
|
Attenuation( dB ) |
3 |
6 |
10 |
15 |
20 |
30 |
40/50/60 |
|
Tolerance( dB ) |
±0.5 |
±0.5 |
±0.6 |
±0.8 |
±1.0 |
±1.2 |
±2.0/±2.5/±3.0 |
|
Connector |
N Male - N Female |
||||||
|
Operating Temperature( °C ) |
-40 ~ + 80 |
||||||
Size as below（mm）
